Breather Valve

Breather Valve

Storage tanks & other vessels containing flammable and explosive chemicals and mixture are prevalent in chemical process industries plants.

Flame Arrester are installed with Breather Valve to prevent potential hazard associated with flammable and explosives materials.

Features:

  • Rugged Construction
  • High Efficiency And Better Performance
  • The material selection of guiding components High Efficiency Spring
Specifications:



  • Size  :  1″ (DN25) to 12″ (DN300)
  • Design Pressure  :  10 Barg(g)
  • Design Temperature  :  120 Deg C
  • Operating Temperature  :  60 Deg C
  • Rating  :  150# (Higher ratings on request)
  • End Connection  :  Flanged (As per ASME B16.5)
 Standard Material of Construction:



  • Body  :  A216 Gr. WCB / A351 Gr. CF8 / A351 Gr.
    CF8M / A351 Gr. CF3 / A351 Gr. CF3M
  • Element Plate  :  SS 316
  • Element Mesh  :  SS 321
  • Hood  :  Carbon Steel / Stainless Steel

Find applications Drain Plugs, Pressure Taps, Misc Fittings, Protective Coatings, Special Features.

Breather Valve
Inline Flame Arrester
Inline Flame Arrester
Product Code SD-FA-IL-101 Series

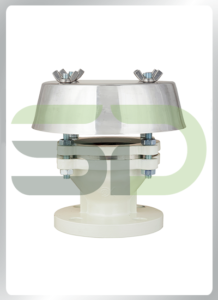

End of Line Flame Arrester
End of Line Flame Arrester
Product Code SD-FA-EL-101 Series

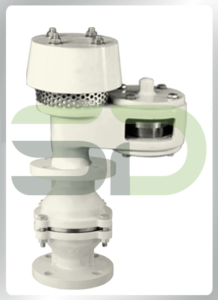

Breather Valve Cum Flame Arrester
