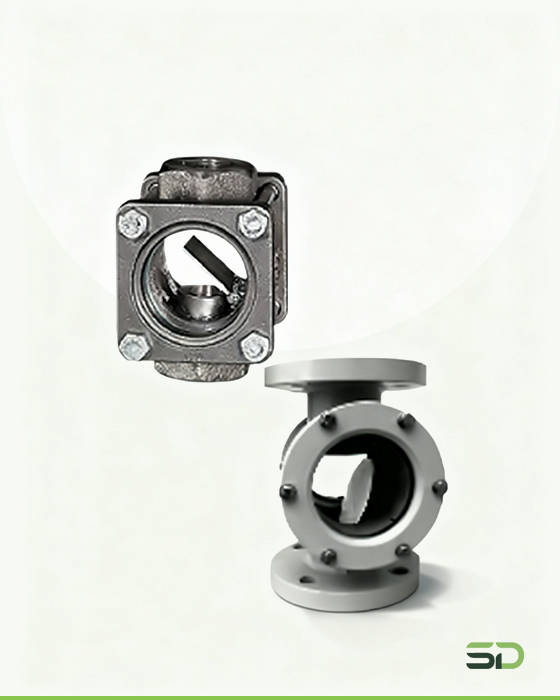

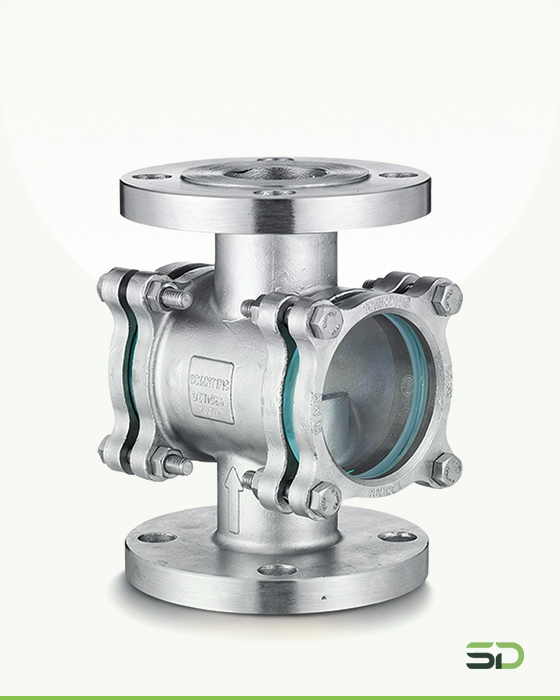

Double Window Sight Glass with Flapper
Double Window Sight Glass with Flapper
Double Window Sight Glass with Flapper
Product Code: DWS4000-FP / DWF4000-FP
A sight Flow Indicator is a device which is inserted in a run of pipe to observe the flow of fluid in the pipe. To enhance the visibility of the flow, spinner is often incorporated in the flow stream so that fluid impinging on the spinner vanes cause it to turn.
SPECIFICATIONS
| Design Temperature | : | Up to 200°C depending upon the type |
| Design Pressure | : | Up to 20 Kg/cm² depending upon the type |
| Line Size | : | Up to 400 NB depending upon the type |
| Material of wetted parts | : | CI/ASTMA 216GrWCB/ASTMA 351CF8/ASTMA 351CF8M/MS/CS/ SS304/SS304L/SS316 L and PP/HDPE/PVDF/PFA/ PTFE Lined |
| Connection | : | Flanged to ASA/ABS/DIN/JIS/Screwed BSP/NPT/Butt Weld |
Download
Double Window Sight Glass with Flapper
Double Window Sight Glass
Product Code DWF4000
Double Window Sight Glass with Flapper
Product Code DWS4000-FP / DWF4000-FP

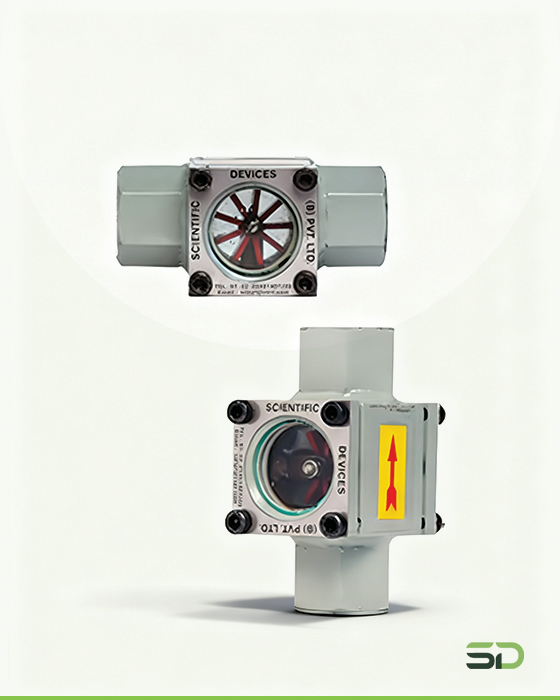

Double Window Sight Glass with Rotary Wheel
Product Code DWS4000-RW

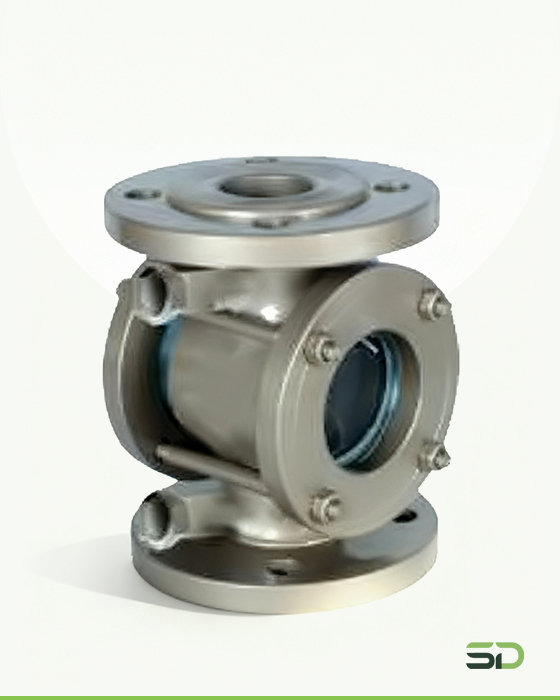

Double Window Sight Glass with Steam Jacket
Product Code DWF4000-SJ

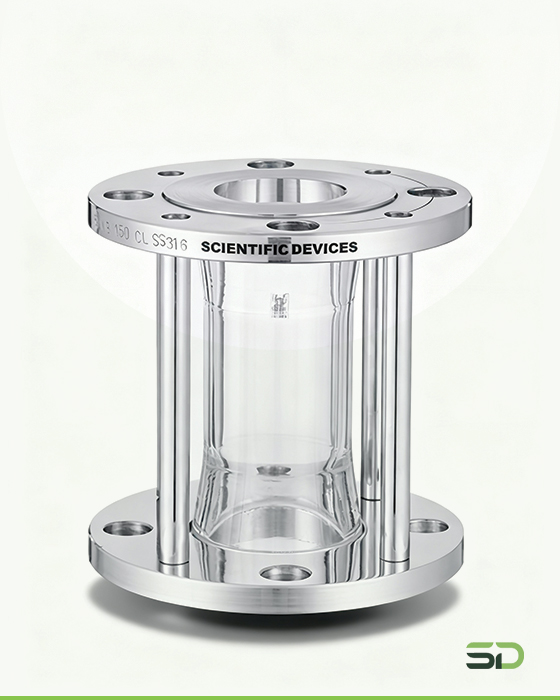

Full View Sight Glass
Product Code FV8000
Full View Sight Glass with Indicating Ball
Product Code DWS4000-B

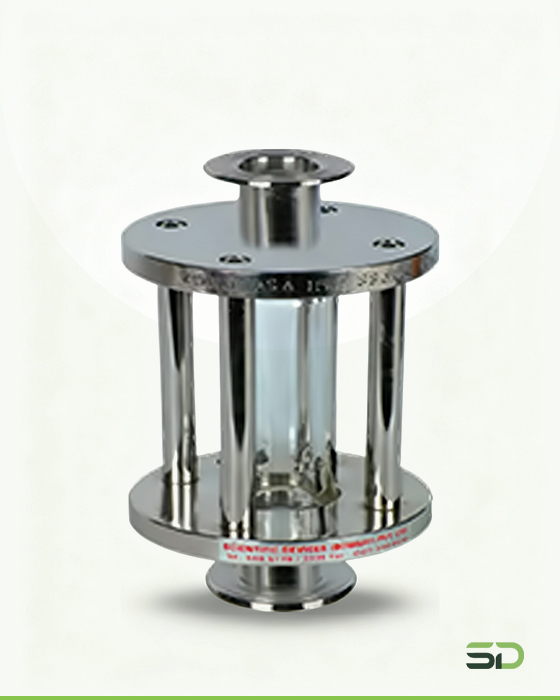

Full View Sight Glass with Tri-Clover Connection
Product Code FV8000TC

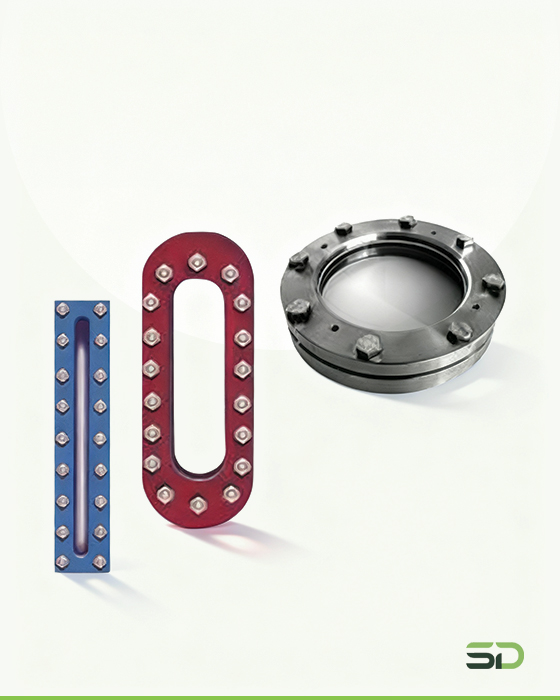

Rectangular, Obround & Circular Sight Glass
