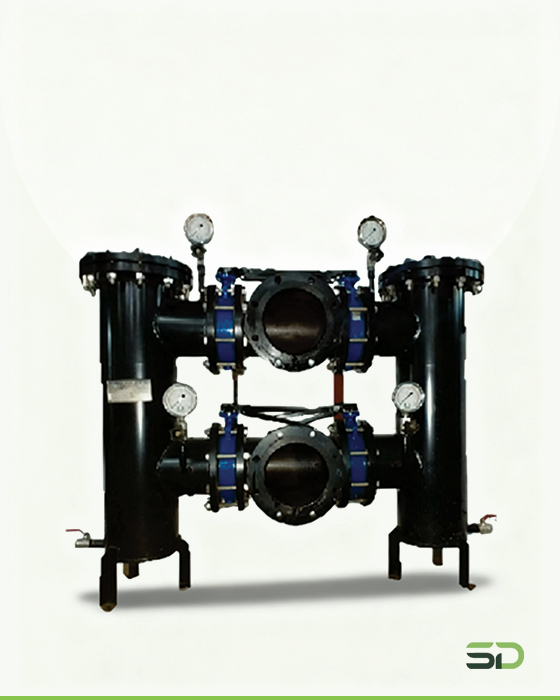

Duplex Filter Strainer
Duplex Filter Strainer
Product Code: DST
The strainer is a filtering element incorporated in the pipe line. It is called a ‘Y’ Type, ‘Basket’ Type or ‘T’ Type strainer because of its shape. Inside the strainer is a mesh, which blocks any suspended impurities that the fluid has and is collected in the mesh. During maintenance the mesh can be removed and cleaned of the impurities.
Design Conforms to ASME B16.10 & ASTM Section VIII-Div.2
SPECIFICATIONS
| Material of Wetted Parts | : | CI/ASTM A216 Gr WCB/ASTMA351CF 8/ASTMA351CF8M/MS/CS/SS304/SS304L/SS316/SS316L/PP & HDPE |
| Filter Elements | : | SS316/SS304/BRASS |
| Mesh Size | : | 5 to 500 microns |
| Temperature | : | Up to 600°C |
| Pressure | : | Up to 60 Kg/CM² |
| Line Size | : | Up to 1200 NB depening upon the type |
| Connection | : | Flanged to ASA/BS/DIN/JIS/Screwed BSP/NPT/Butt Weld |
Download
Duplex Filter Strainer

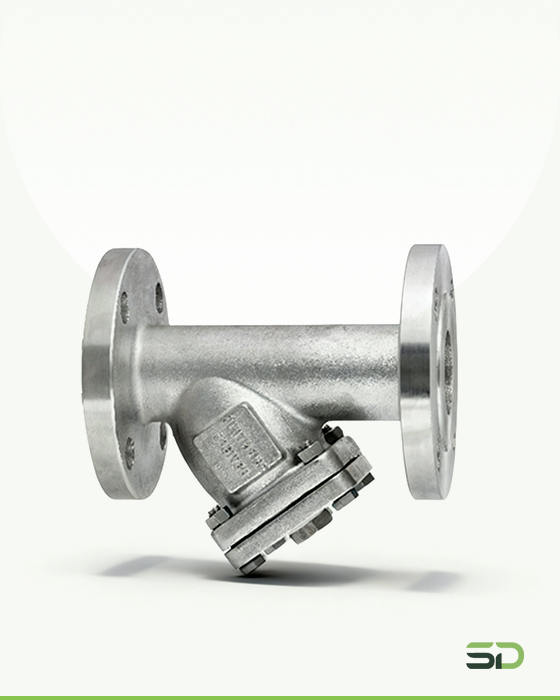

Y Type Strainer Flanged End
Product Code YST-F

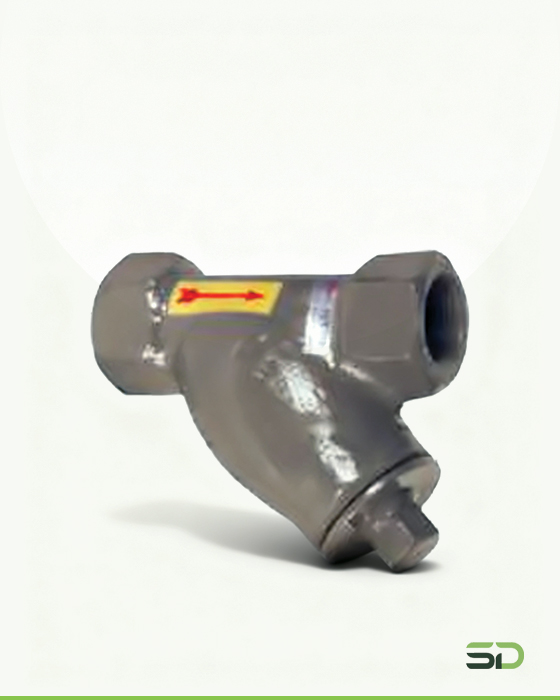

Y Type Strainer Screwed End
Product Code YST-S

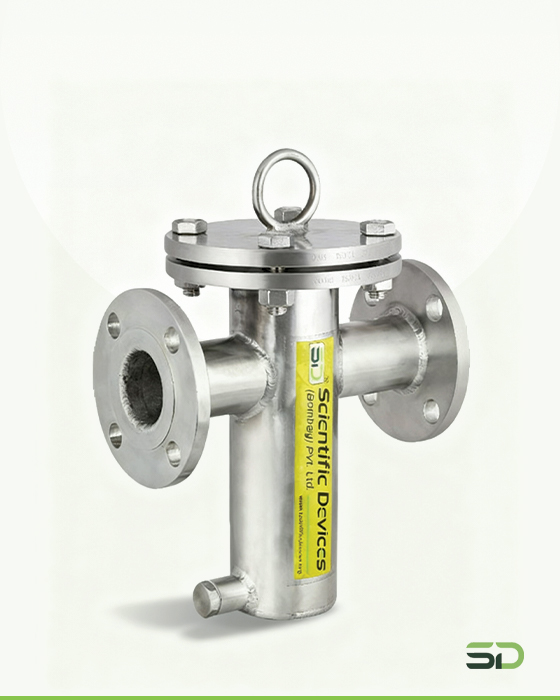

Basket Type Strainer
Product Code BST-F

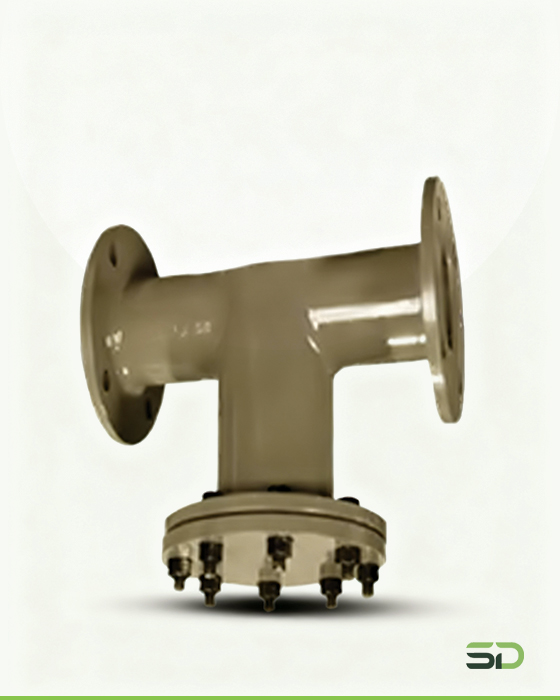

Tee Type Strainer
Product Code TF
Duplex Filter Strainer
Product Code DST

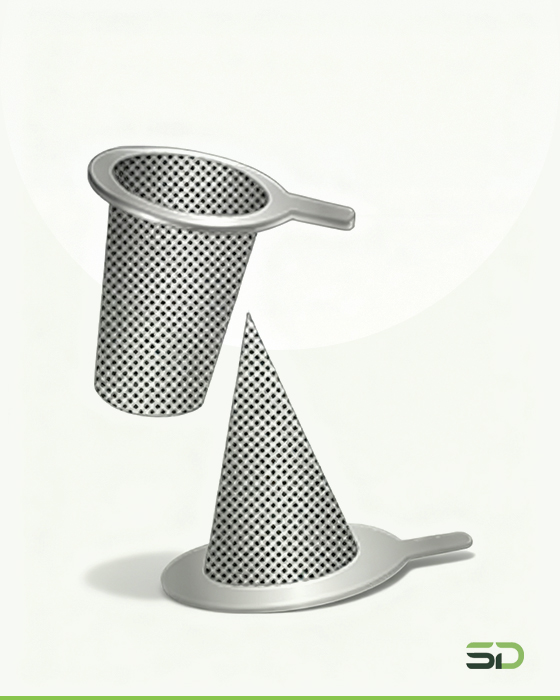

Conical Strainer
Product Code CST

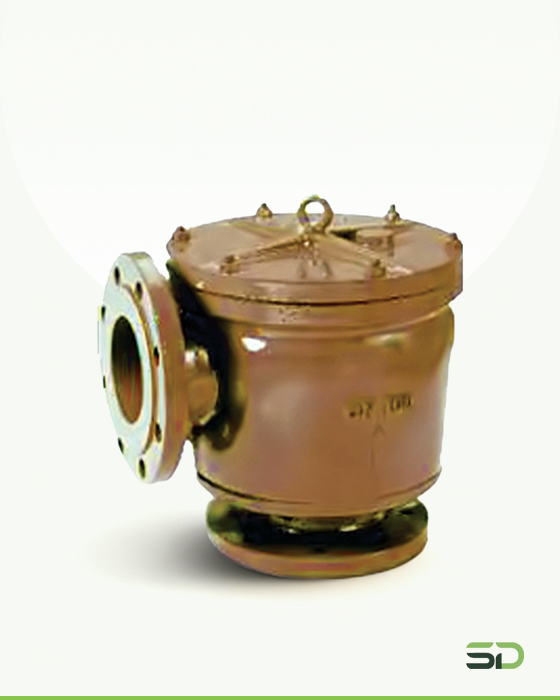

Mud Box Angular
Product Code MDA

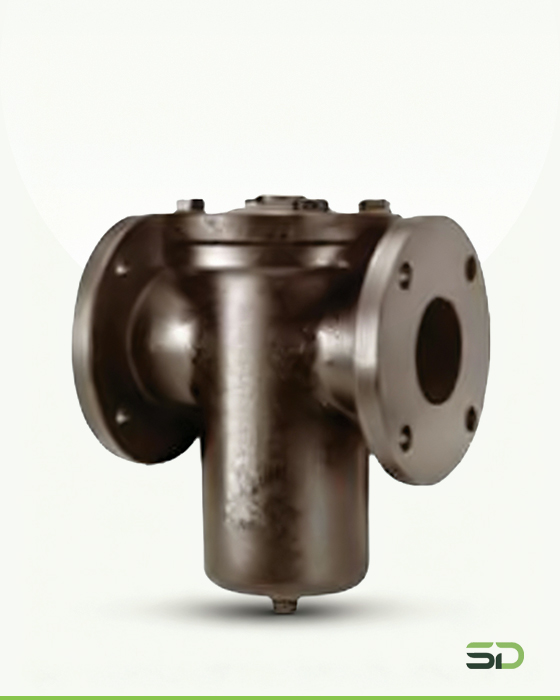

Mud Box Straight
Product Code MDS

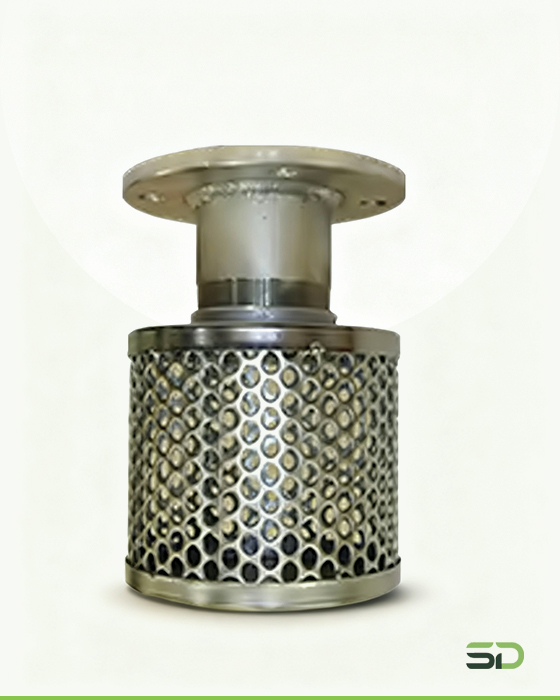

Suction Type Strainer
