Electromagnetic Flow Meter
Electromagnetic Flow Meter
Product Code: SMAG- 300-TX-PM (SMAG-300 Series)
The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. It is obstruction less and hence offers no pressure drop in the process. Absence of moving parts ensures that there is no need for maintenance. The performance of the instrument is not affected by the properties of the material such as corrosiveness, viscosity, density, acidity and alkalinity. It can measure the flow of liquids, pastes and slurries in water, wastewater. Suitable for chemical, fertilizer, paper, dairy, sugar, food and beverage industries.
Design & Calibration Conforms to ISO 9104 & ISO DIS 6817
Specification:
| * Line Size | : | 15 NB to 600 NB |
| * Connection | : | Flanged to ASA/BS/DIN/JIS |
| * Power Supply | : | 220 VAC/24VDC |
| * Accuracy | : | ± 0.5% of FSD |
| * Minimum Conductivity | : | 5 µs/cm |
| * Lining | : | PTFE, EPDM, Rubber |
| * Process temperature | : | Up to 80°C for Rubber, Up to 150°C for PTFE |
| * Electrodes | : | SS 316,Hastalloy C, Titanium, Monel, Pt-Rh |
| * Protection | : | IP66 / Ex-Proof; Optional: IP 68 |
| * Flow Units | : | M3/H, M3/M,M3/S, L/H,L/M,L/S, USG/H,USG/M,USG/S |
| * Output | : | 4- 20 mA+HART |
| * Relay Output | : | Batcher |
| *Flow Rate Display | : | 5 Digit LCD |
| * Totaliser Display | : | 10 digit LCD |
| * Communication Port | : | RS485 (Optional) |
| * Lowest Velocity | : | 0.033 m/s |
| * Highest Velocity | : | 15 m/s |
Electromagnetic Flow Meter

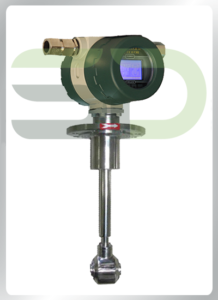

Insertion type electromagnetic flow meter with Field Mounted Flow rate Indicator, Totalizer & 4-20mA Output
Product Code SMAG-700-TL-TX-P

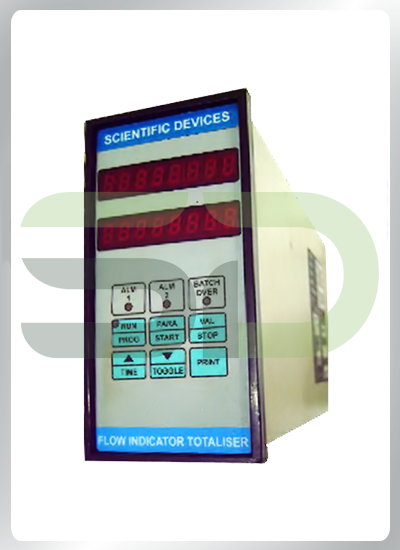

Panel Mounted Flow rate Indicator/Totalizer/Batcher & 4-20mA Re transmission output
Product Code SD-2001

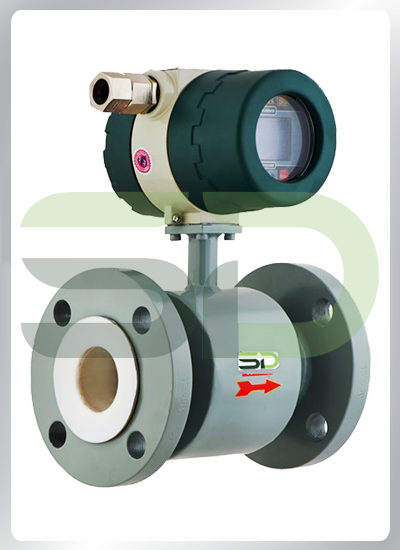

Electromagnetic Flow Meter with 4-20mA Output
Product Code SMAG- 300-FR-TL-TX

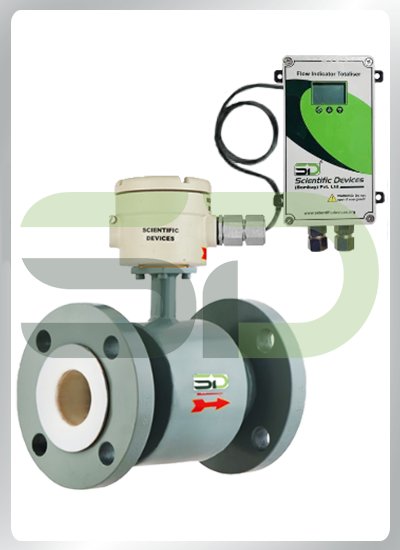

Electromagnetic Flow Meter with remote indication & 10 meter cable
Product Code SMAG- 300-TX-PM

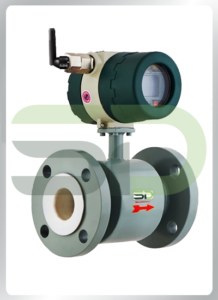

Data Communication of Electromagnetic Flow Meter to centralized computers via GSM/GPRS Modem
Product Code SMAG-300-FR-TL-TX-GSM
