Horizontal Metal Tube Rotameter
Horizontal Metal Tube Rotameter
Product Code: (HSDMT Series)
It is an instrument used to measure instant flow rate of Liquids and Gases. Can be used for metering of translucent/opaque fluids under high operating pressure and temperature.
Design & Calibration Conforms to ISA-RP16.5 & ISA-RP16.6
Specification
| Fluid | : | Liquids & Gases |
| Density / Sp. Gravity | : | Up to 2.95 |
| Viscosity | : | Up to 200 cp |
| Design Temperature | : | Up to 150°C |
| Design Pressure | : | Up to 25 Kg/cm² |
| Measuring Range | : | 100 to 40,000 LPH of Water/Liquid 3.3 to 1400 Nm³/hr of Air/Gas at NTP |
| Line Size | : | Up to 4″ NB |
| Available Materials | : | SS304/SS304L/SS316/SS316L/MS PTFE lined on SS |
| Connection | : | Flanged to ASA/BS/DIN/ Triclover Standard Screwed to BSP/NPT(M/F) |
| Accuracy | : | ±2% of FSD & ±1.5% on request |
| Enclosure | : | Weather proof, IP-65 / Flame Proof |
Horizontal Metal Tube Rotameter

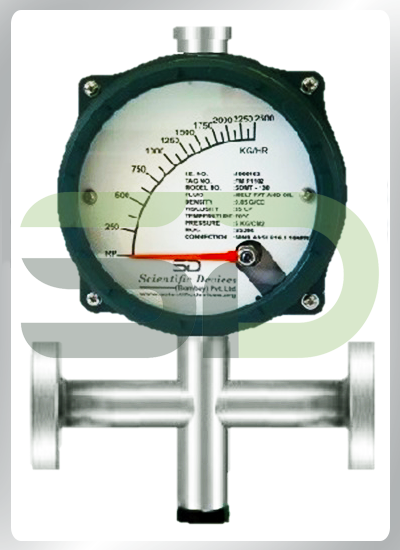

Horizontal Metal Tube Rotameter
Product Code HSDMT

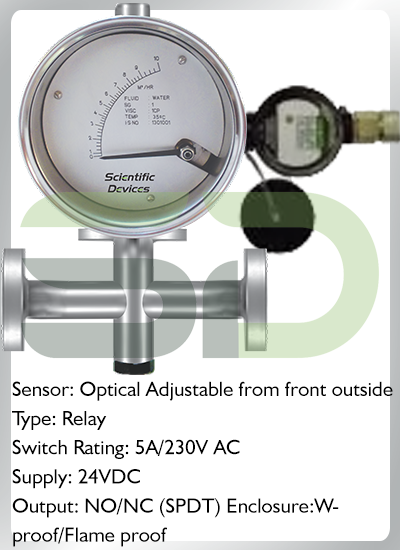

Horizontal Metal Tube Rotameter With Flow Alarm Switch Adjustable Throughout Flow Range
Product Code HSDMTFS

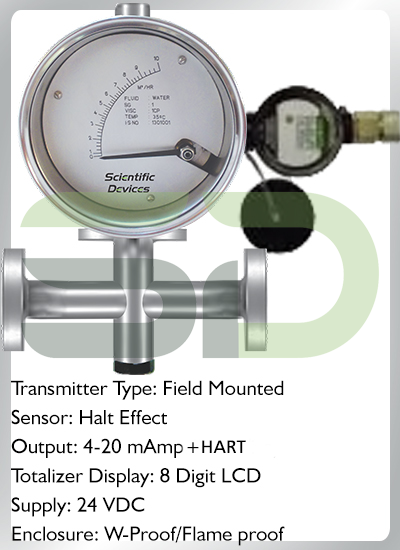

Horizontal Metal Tube Rotameter With 4-20 mA Transmitter
Product Code HSDMT-TX

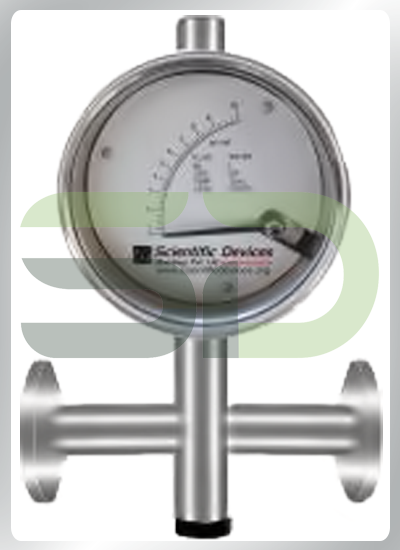

Horizontal Metal Tube Rotameter with Tri-clover Fitting
Product Code HSDMT-TC

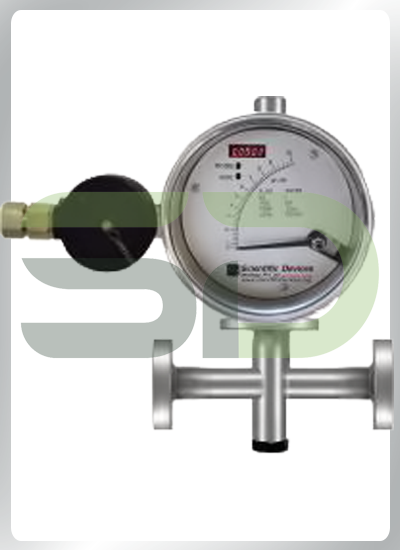

Horizontal Metal Tube Rotameter with 4-20 mA Transmittes & Totalizer
Product Code HSDMT-TX-TZ

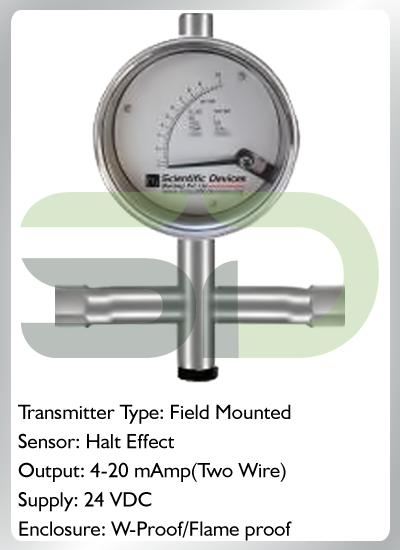

Horizontal Metal Tube Rotameter with Screwed Connection
Product Code HSDMT-SC
Only Orifice Plate & Metal Tube Rotameter Without Carrier Ring And Impulse Piping For By-Pass Installation
Product Code BPC-SDMT-OP
