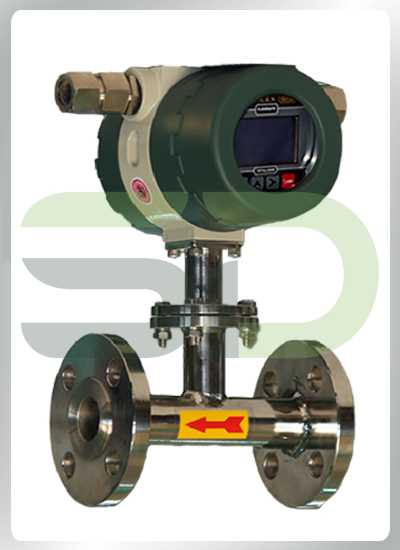

Turbine flowmeter with Field Mounted Flow Rate Indicator, Totalizer & 4-20 mA Output
Turbine flowmeter with Field Mounted Flow Rate Indicator, Totalizer & 4-20 mA Output
Product Code: TFM-FR-TZ-TX-P

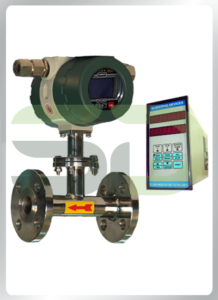

Scientific Devices Turbine Flow Meters are useful for liquids & gases in general industrial application. They provide excellent performance with quality & reliability. Suitable for as hygienic application. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. The pick -of coil senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. Summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to flow rate which is converted to mA signal by electronic circuitry. Flow rate Indicator / Totalizer / Transmitter and Controllers are available in Local/Remote and Panel Mounted Options.
Design & Calibration Conforms to ISA-RP31.1
Specification:
| Fluid | : | Clear Liquids & Gases |
| Viscosity | : | Up to 20 cp |
| Design Pressure | : | Up to 25 Kg/cm2 |
| Line Size | : | 15 NB to 200 NB |
| Available Materials | : | SS304 /SS304L/SS316/SS316L |
| Connection | : | Flanged to ASA/BS/DIN/ Triclover Standard Screwed to BSP/NPT(M/F) |
| Flow rate Display | : | 8 Digit LCD |
| Totalizer Display | : | 10 Digit LCD |
| Protection | : | IP66 / Ex-Proof; Optional: IP 68 |
| Flow Units | : | M3/H,M3/M,M3/SL/H,L/M,L/S,USG/H,USG/M,USG/S |
| Design Temperature | : | Up to 110C |
| Power Supply | : | 220 VAC/24VDC |
| Output | : | 4- 20 mA+HART |
| Relay Output | : | Batcher |
| Accuracy | : | +-1% of FSD & +- 0.5% on request |
| Communication port | : | RS485(Modbus) (Option) |
| Lowest velocity | : | 0.1 m/s |
